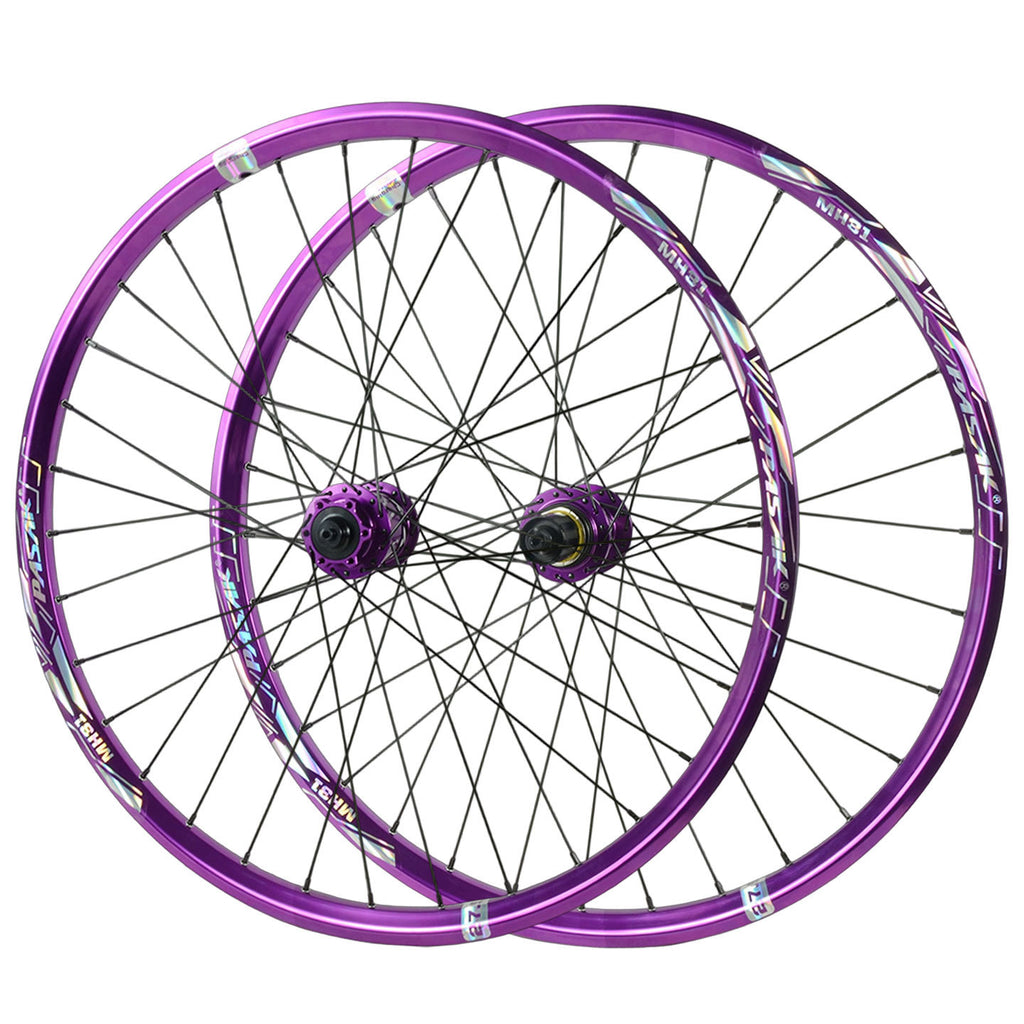

PASAK HB10/MH31 Downhill MTB Wheelset- 26/27.5/29 Inch, HG/MS/XD Freeh

Product Description

Why Choose These MTB Wheels?

✔ Multi-Size Compatibility – Available in 26", 27.5" (650B), and 29" diameters to suit all modern mountain bike frames, from classic to enduro/trail geometries.

✔ Wide Gear Compatibility – Freehub supports 7-12 speed cassettes, with HG (default), MS (Micro Spline for Shimano 12-speed), and XD (for SRAM 12-speed) options. Choose based on your drivetrain.

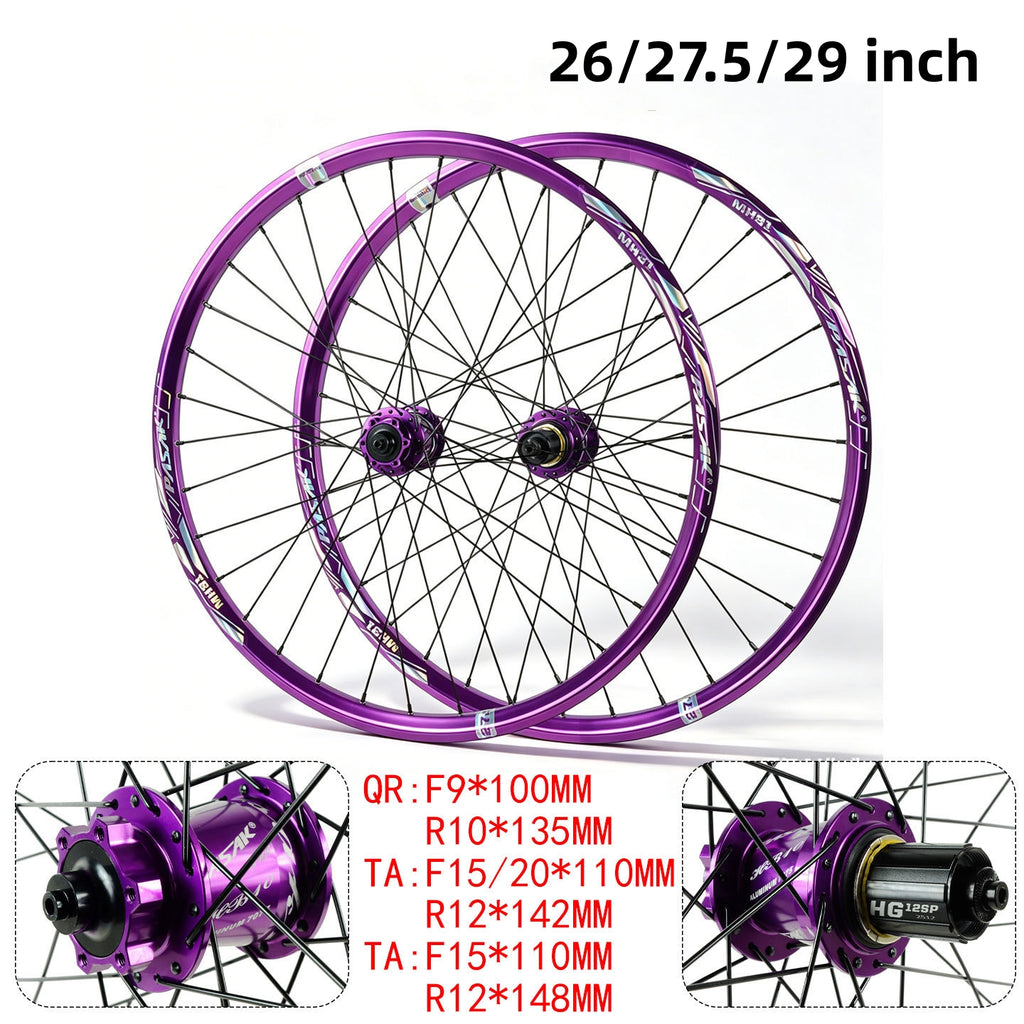

✔ Versatile Axle Configurations – Select from:

Quick Release (QR): Front 9x100mm, Rear 10x135mm (traditional MTB standard)
Thru-Axle (TA): Front 20x110mm or 15x100mm; Rear 12x142mm or 12x148mm (Boost compatible)

✔ Durable 7075 Alloy Hubs – Features 6-pawl, 3-tooth high-engagement freehub for quick, reliable engagement. Hubs use 2 front / 4 rear sealed bearings for smooth, long-lasting rotation.

✔ Strong 32-Hole Build – Rims with 32 holes front and rear, laced with 45# steel spokes and 14mm brass nipples for a stiff, reliable wheel set.

Technical Specifications

Rim Material: 6061 aluminum alloy
Rim Dimensions: 22mm height, 32mm external width, 26mm internal width
Tire Compatibility: Clincher (tubeless ready with tape), fits 1.5" – 2.6" tires
Spoke Count: 32 holes front and rear
Hub: 7075 aluminum, 6-pawl/3-tooth high-engagement freehub
Bearings: 2 front, 4 rear (sealed cartridge)
Brake Interface: 6-bolt, 44mm center lock (disc brake only)
Axle Options:
QR: Front 9x100mm, Rear 10x135mm
Thru-Axle: Front 20x110mm or 15x100mm; Rear 12x142mm or 12x148mm
Freehub: HG (default), MS, or XD (select at purchase)
Valve: Schrader (A/V) valve hole
Weight (approx., with rim tape):
26": Front 1108g, Rear 1200g
27.5": Front 1173g, Rear 1235g
29": Front 1190g, Rear 1270g
Tire Recommendation: 1.5" – 2.6" Schrader valve tires

Key Features Explained

🔹 Wide Internal Rim Width (26mm): Supports modern 1.5" – 2.6" tires, providing better tire profile and grip, ideal for trail, all-mountain, or gravel use.

🔹 High-Engagement Hub: 6-pawl/3-tooth design offers quicker pickup (approx. 20° engagement) for responsive acceleration and technical climbs.

🔹 Sealed Bearings: 2 front/4 rear sealed bearings ensure smooth rolling and durability in wet or dusty conditions.

🔹 Axle Versatility: Choose QR for older frames or Thru-Axle (including Boost 148mm) for modern stiffness and alignment benefits.

🔹 Universal Freehub: Compatible with Shimano HG (7-11 speed), Shimano Micro Spline (12-speed), or SRAM XD (12-speed) cassettes. Confirm your drivetrain when ordering.

Compatibility & Installation Notes

✅ Fits most mountain bikes with disc brakes (6-bolt rotors). Tubeless-ready (requires tape/valves).

✅ Check frame axle standards (QR/Thru-Axle sizes) and wheel diameter before ordering.

✅ Freehub selection:

HG: Shimano/SRAM 7-11 speed, or Shimano 12-speed with HG-compatible cassette
MS: Shimano 12-speed MTB (e.g., Deore/SLX/XT/XTR)
XD: SRAM 12-speed (e.g., NX/GX/X01) or some 11-speed

✅ Use appropriate rotors (6-bolt, 44mm center lock) and cassettes. Spokes are tight; professional truing/tensioning recommended.

A Reliable, Versatile Wheelset for Trail Riders

Built for durability and compatibility, the PASAK HB10/MH31 wheel set suits everything from XC to trail riding. With multiple axle and freehub options, it’s the affordable upgrade for riders who want reliability without breaking the bank.

Product Description

Why Choose These MTB Wheels?

✔ Multi-Size Compatibility – Available in 26", 27.5" (650B), and 29" diameters to suit all modern mountain bike frames, from classic to enduro/trail geometries.

✔ Versatile Axle Configurations – Select from:

Quick Release (QR): Front 9x100mm, Rear 10x135mm (traditional MTB standard)
Thru-Axle (TA): Front 20x110mm or 15x100mm; Rear 12x142mm or 12x148mm (Boost compatible)

✔ Durable 7075 Alloy Hubs – Features 6-pawl, 3-tooth high-engagement freehub for quick, reliable engagement. Hubs use 2 front / 4 rear sealed bearings for smooth, long-lasting rotation.

✔ Strong 32-Hole Build – Rims with 32 holes front and rear, laced with 45# steel spokes and 14mm brass nipples for a stiff, reliable wheel set.

Technical Specifications

Rim Material: 6061 aluminum alloy
Rim Dimensions: 22mm height, 32mm external width, 26mm internal width
Tire Compatibility: Clincher (tubeless ready with tape), fits 1.5" – 2.6" tires
Spoke Count: 32 holes front and rear
Hub: 7075 aluminum, 6-pawl/3-tooth high-engagement freehub
Bearings: 2 front, 4 rear (sealed cartridge)
Brake Interface: 6-bolt, 44mm center lock (disc brake only)
Axle Options:
QR: Front 9x100mm, Rear 10x135mm
Thru-Axle: Front 20x110mm or 15x100mm; Rear 12x142mm or 12x148mm
Freehub: HG (default), MS, or XD (select at purchase)
Valve: Schrader (A/V) valve hole
Weight (approx., with rim tape):
26": Front 1108g, Rear 1200g
27.5": Front 1173g, Rear 1235g
29": Front 1190g, Rear 1270g
Tire Recommendation: 1.5" – 2.6" Schrader valve tires

Key Features Explained

🔹 Wide Internal Rim Width (26mm): Supports modern 1.5" – 2.6" tires, providing better tire profile and grip, ideal for trail, all-mountain, or gravel use.

🔹 High-Engagement Hub: 6-pawl/3-tooth design offers quicker pickup (approx. 20° engagement) for responsive acceleration and technical climbs.

🔹 Sealed Bearings: 2 front/4 rear sealed bearings ensure smooth rolling and durability in wet or dusty conditions.

🔹 Axle Versatility: Choose QR for older frames or Thru-Axle (including Boost 148mm) for modern stiffness and alignment benefits.

🔹 Universal Freehub: Compatible with Shimano HG (7-11 speed), Shimano Micro Spline (12-speed), or SRAM XD (12-speed) cassettes. Confirm your drivetrain when ordering.

Compatibility & Installation Notes

✅ Fits most mountain bikes with disc brakes (6-bolt rotors). Tubeless-ready (requires tape/valves).

✅ Check frame axle standards (QR/Thru-Axle sizes) and wheel diameter before ordering.

✅ Freehub selection:

HG: Shimano/SRAM 7-11 speed, or Shimano 12-speed with HG-compatible cassette
MS: Shimano 12-speed MTB (e.g., Deore/SLX/XT/XTR)
XD: SRAM 12-speed (e.g., NX/GX/X01) or some 11-speed

✅ Use appropriate rotors (6-bolt, 44mm center lock) and cassettes. Spokes are tight; professional truing/tensioning recommended.

A Reliable, Versatile Wheelset for Trail Riders
